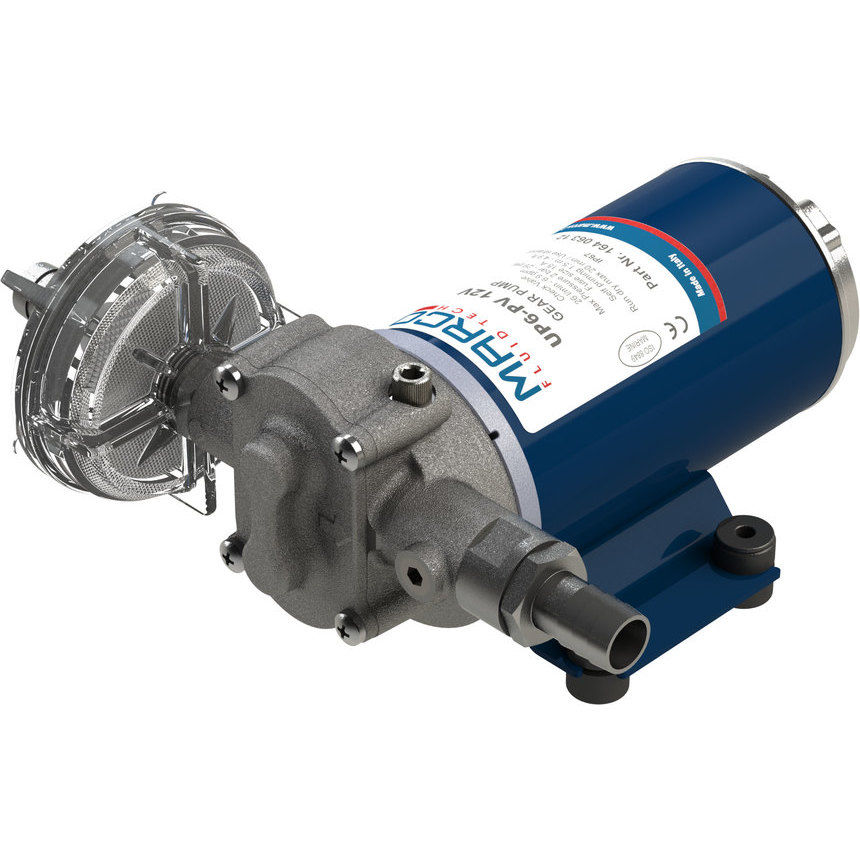

UP6-PV 12V/24V Polymer Gear pump + check valve 26 l/min
€288.00
Flow rate: 26 l/min (6.9 gph)
Pressure: 2 bar (29 psi)
The Marco UP6-PV is a self-priming with integrated check valve PEEK polymer gear pump designed for bilge service. Nickel-plated brass body and stainless steel shaft. 12V/24V dual-voltage compatibility for reliable operation.
4 weeks delivery
Description
Introducing the Marco UP6-PV Polymer Gear Pump with Check Valve
Meet the Marco UP6-PV Polymer Gear Pump with Check Valve, the reliable solution for all your pumping needs. With a flow rate of 26 liters per minute, this pump is designed to deliver exceptional performance for various applications.
Key Features:
- 12V/24V Polymer Gear Pump
- Integrated Check Valve
- Efficient Flow Rate: 26 l/min
- Weighs only 3.5 kg
Reliability and Durability
The Marco UP6-PV is built to last, featuring high-quality materials and precision engineering. Whether you're in the marine, agriculture, or industrial sector, this pump is designed to meet your demands with long-lasting reliability.
Easy to Install and Use
With its compact design and simple installation process, the Marco UP6-PV ensures convenience and ease of use. Its lightweight nature at 3.5 kg makes it easy to handle and maneuver, saving you time and effort.
Optimized Performance
Experience optimized pumping performance with the integrated check valve that ensures smooth operation and prevents backflow, making it suitable for a wide range of fluid transfer applications.
Enhance Your Operations with Marco
Invest in the Marco UP6-PV Polymer Gear Pump with Check Valve to elevate your pumping operations. Whether it's for fuel transfer, lubrication, or other fluid handling needs, this pump is a valuable addition to any setup.
Order now and experience the reliability, durability, and performance of Marco's exceptional pumping solution.
Technical details
| Part n. | 16406312 | 16406313 |
| Product Name | UP6-PV | UP6-PV |
| Voltage (V) | 12 | 24 |
| Consumption (A) | 10 | 5 |
| Fuse (A) | 15 | 7,5 |
| Self-priming (m) | 1,5 | 1,5 |
| Flow rate (l/min) | 26 | 26 |
| Pressure (bar) | 2 | 2 |
| Ports (BSP) | 1/2" | 1/2" |
| Hose (ID) (mm) | 16 | 16 |
| IP Protection | 67 | 67 |
| Motor power (W) | 180 | 180 |
Codes
| Product Name | Manufacturer's Code | EAN |
| UP6-PV 12V | 164 063 12 | 8022278607837 |
| UP6-PV 24V | 164 063 13 | 8022278607844 |
Dimensions
| Product Name | Height | Length | Width | Weight |
| UP6-P | 206 mm | 221 mm | 111 mm | 3.4 kg |
Download
Spare Parts
R6400014 - R-KIT Filter 1/2" BSP (O-Ring 3287 NBR)
R6400103 - R-KIT 1/2" BSP-1/2" NPT brass fittings + 1/2" BSP nipple (NBR 123 O-Ring, hose ø16 mm)
R6400094 - Marco R6400094
R6400015 - R-KIT Anti-Vibration Mounts for Pumps
R6400009 - R-KIT inner brush holder for Ø77 mm motor
R6400122 - R-KIT 2 air vent cap and 2 O-ring for electronic pumps
R6400099 - R-KIT brass hosefitting + nipple, 1/2" BSP
R6400088 - R-KIT PEEK gears, ø34 mm (NBR 2225 O-Ring)
