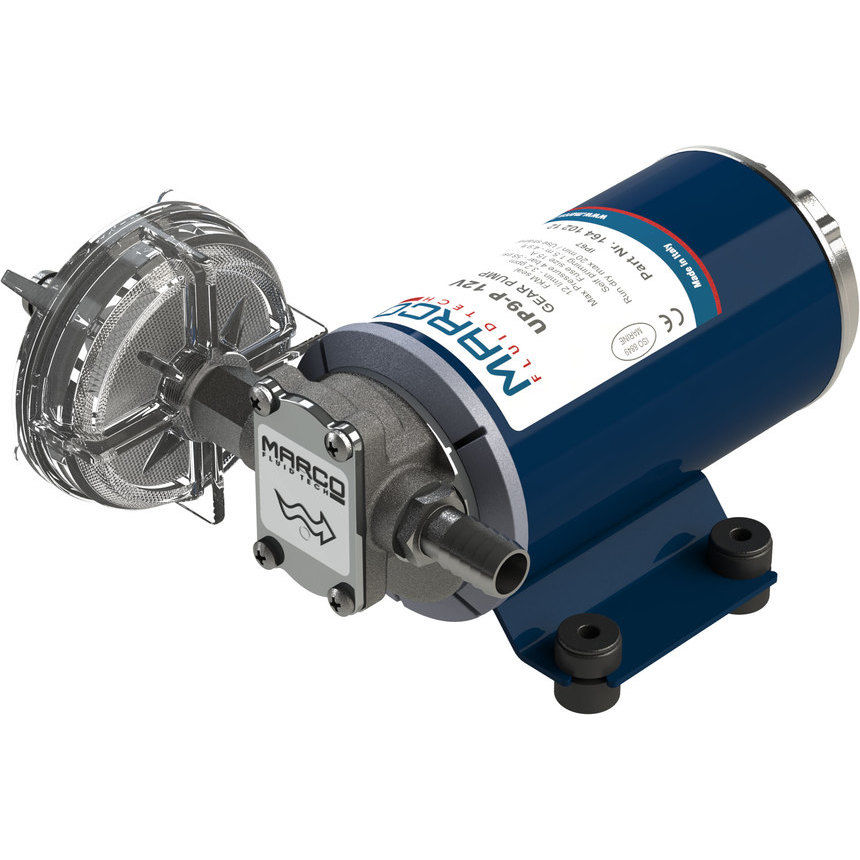

UP9-P 12V/24V Heavy duty PEEK gear pump 12 l/min FKM O-Ring
€254.00
Flow rate: 12 l/min (3.2 gph)
Pressure: 5 bar (72.5 psi)
The Marco UP9-P is a self-priming PEEK polymer gear pump designed for fluid transfer. Nickel-plated brass body and stainless steel shaft. 12V/24V dual-voltage compatibility for reliable operation.
Description
Introducing the Marco UP9-P Heavy Duty Gear Pump
Experience superior pumping power with the Marco UP9-P Heavy Duty Gear Pump, designed for high-performance applications. With a flow rate of 12 liters per minute, this pump is perfect for various industrial and commercial uses.
Key Features:
- PEEK Gears: Engineered with durable PEEK gears, this pump ensures reliable and efficient operation even in demanding conditions.
- VITON O-Ring: Equipped with VITON O-Rings, the pump offers enhanced sealing and resistance to extreme temperatures and chemicals.
- Robust Construction: Built to withstand heavy-duty use, this pump is a dependable solution for your pumping needs.
Upgrade your pumping system with the Marco UP9-P Heavy Duty Gear Pump and enjoy reliable performance and durability.
Technical details
| Part n. | 16410212 | 16410213 |
| Product Name | UP9-P | UP9-P |
| Voltage (V) | 12 | 24 |
| Consumption (A) | 5 | 3 |
| Fuse (A) | 15 | 7,5 |
| Self-priming (m) | 1,5 | 1,5 |
| Flow rate (l/min) | 12 | 12 |
| Pressure (bar) | 5 | 5 |
| Seal | FKM | FKM |
| O-Ring | FKM | FKM |
| Ports (BSP) | 3/8" | 3/8" |
| Hose (ID) (mm) | 13 | 13 |
| IP Protection | 67 | 67 |
| Motor power (W) | 180 | 180 |
Codes
| Product Name | Manufacturer's Code | EAN |
| UP9-P 12V | 164 102 12 | 8022278605291 |
| UP9-P 25V | 164 102 13 | 8022278605307 |

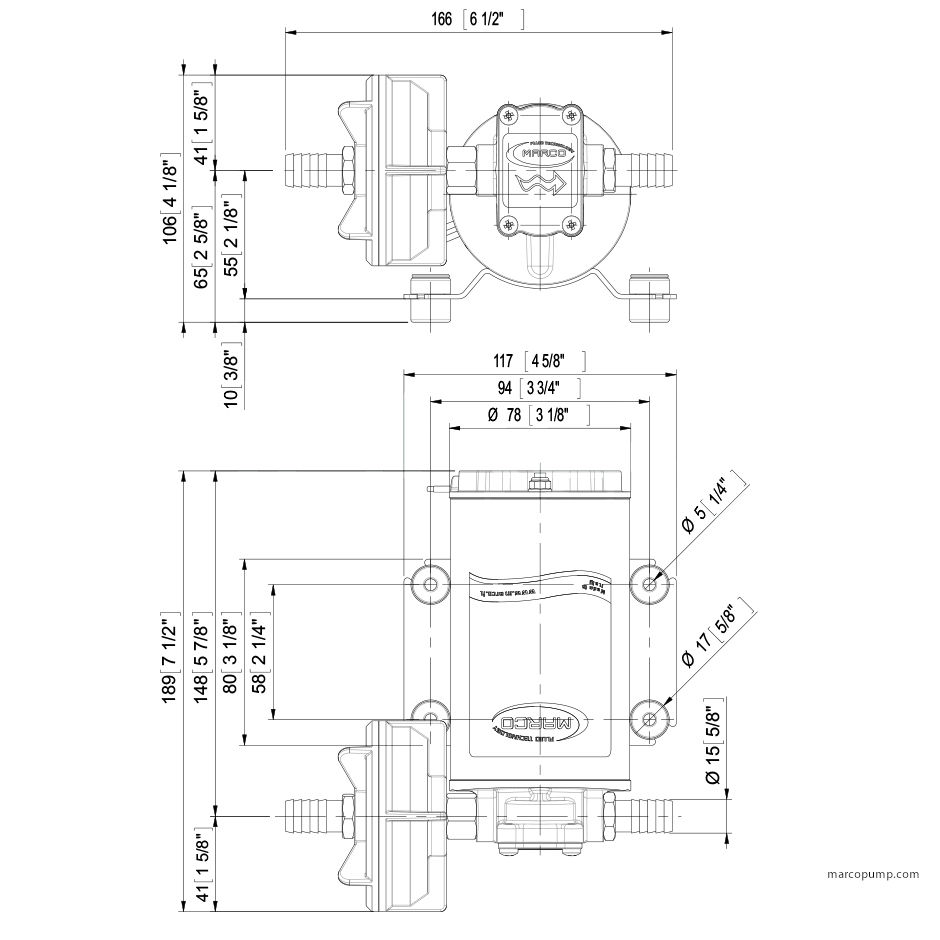

Dimensions
| Product Name | Height | Length | Width | Weight |
| UP9-P | 198 mm | 175 mm | 106 mm | 2.7 kg |
Download
Spare Parts
R6400009 - R-KIT inner brush holder for Ø77 mm motor
R6400109 - R-KIT 3/8" BSP-3/8" NPT brass fittings+ 3/8'' BSP nipple (FKM 2056 O-Ring, hose ø13 mm)
R6400094 - Marco R6400094
R6400013 - R-KIT Filter 3/8" BSP (O-Ring 3287 FKM)
R6400123 - R-KIT ø24 mm PEEK gears (FKM 2162 O-Ring) for brass body
R6400108 - R-KIT brass hosefittings + nipple 3/8" BSP (FKM 2056 O-Ring, hose ø13 mm)
R6400015 - R-KIT Anti-Vibration Mounts for Pumps
